OUTBACK POWER SYSTEMS

FX2024WT

SINGLE PHASE SINEWAVE INVERTER/CHARGER

WITH 30 AMP AC TRANSFER SWITCH

CONTINUOUS AC OUTPUT POWER : 2000 VA @ 25'C

CONTINUOUS AC OUTPUT CURRENT : 8.7 Amps AC @ 25'C

BATTERY CHARGER CURRENT : 55 Amps DC

NOMINAL DC BATTERY VOLTAGE : 24 VDC

NOMINAL AC OUTPUT VOLTAGE : 230VAC

NOMINAL AC OUTPUT FREQUENCY : 60Hz

RANGE OF DC INPUT VOLTAGE : 21 To 34VDC

RANGE OF AC OUTPUT VOLTAGE : 230VAC +/-10%

RANGE OF AC INPUT VOLTAGE : 160 TO 300VAC

RANGE OF AC INPUT FREQUENCY : 54 TO 66 Hz

RANGE OF AC OUTPUT POWER FACTOR : -1 TO 1

MAXIMUM AC INPUT CURRENT : 30 AMPS

MAXIMUM DC INPUT CURRENT : 100 AMPS

MAXIMUM AC INPUT/OUTPUT OVERCURRENT PROTECTION : 30 AMPS AC

MAXIMUM AC OUTPUT FAULT CURRENT : 36 AMPS PEAK FOR 363 Seconds

MAXIMUM AC INPUT BACKFEED CURRENT : 42 AMPS PEAK

MAXIMUM DC INPUT FAULT CURRENT : 1891 AMPS PEAK FOR 0.105 Seconds

NORMAL OPERATING TEMPERATURE RANGE : 25'C

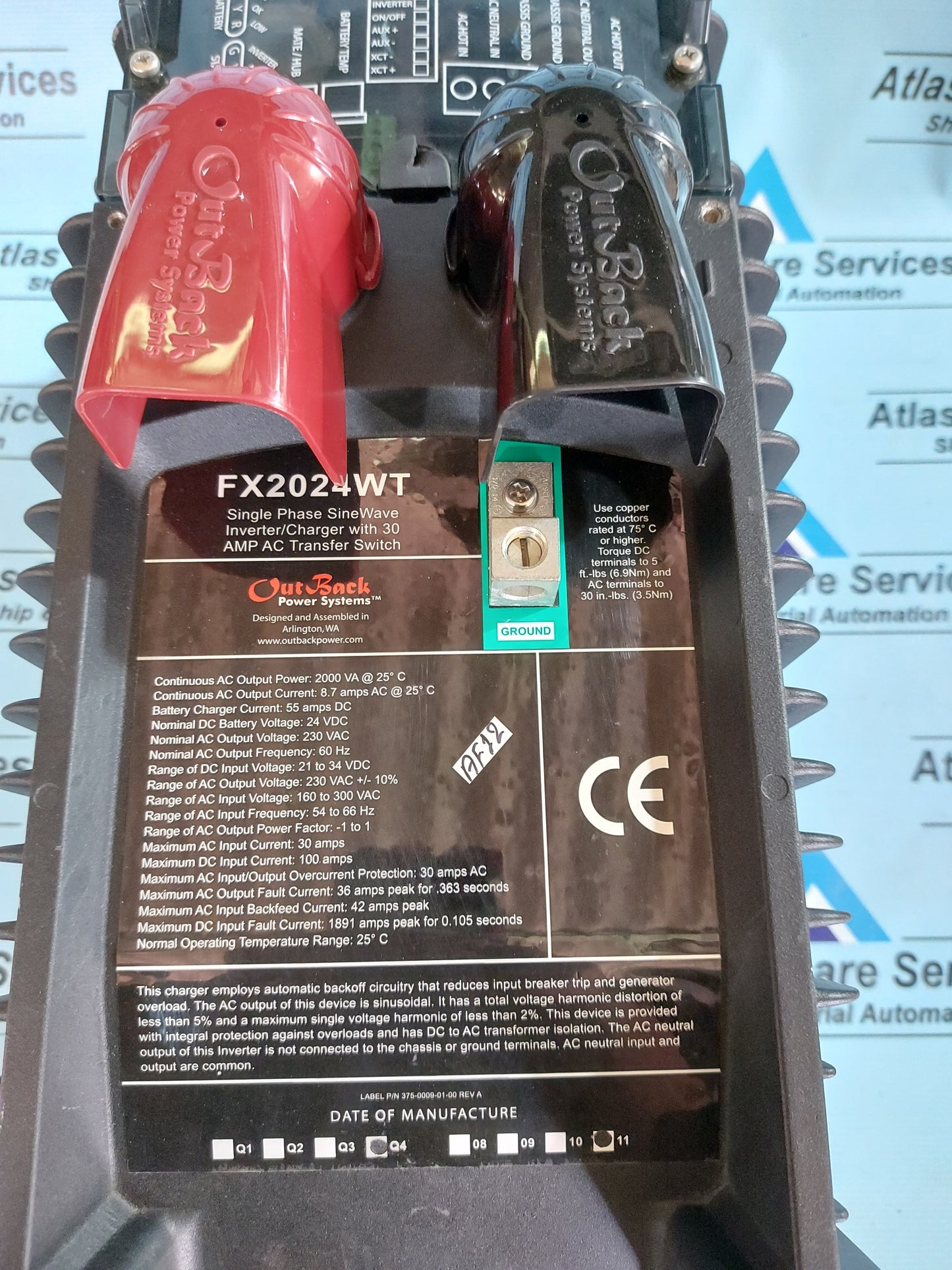

LABEL P : 375-0009-01-00

REV.: A

CONDITION : USED 1 PCS

REF.NO : AF12/28.000
