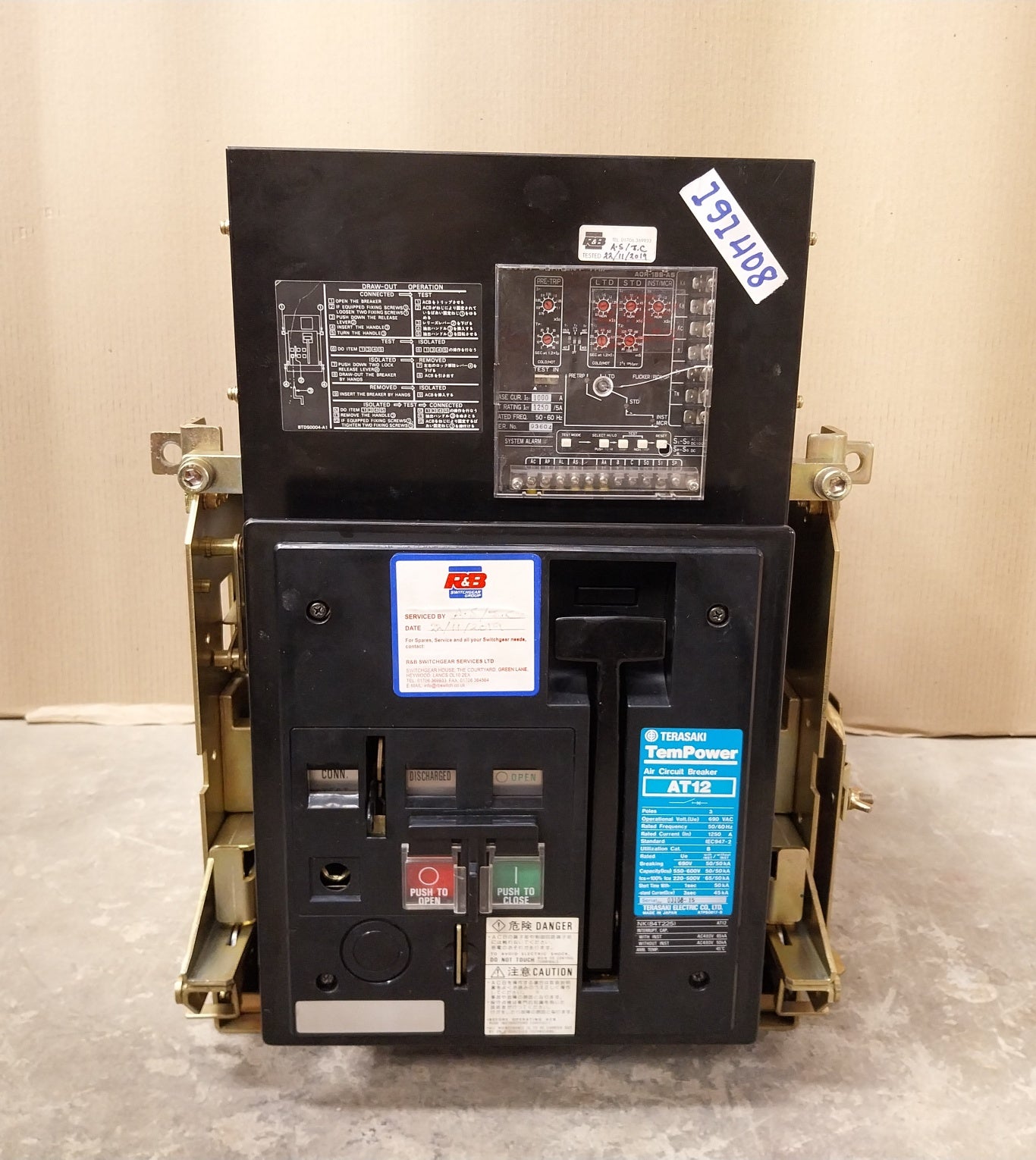

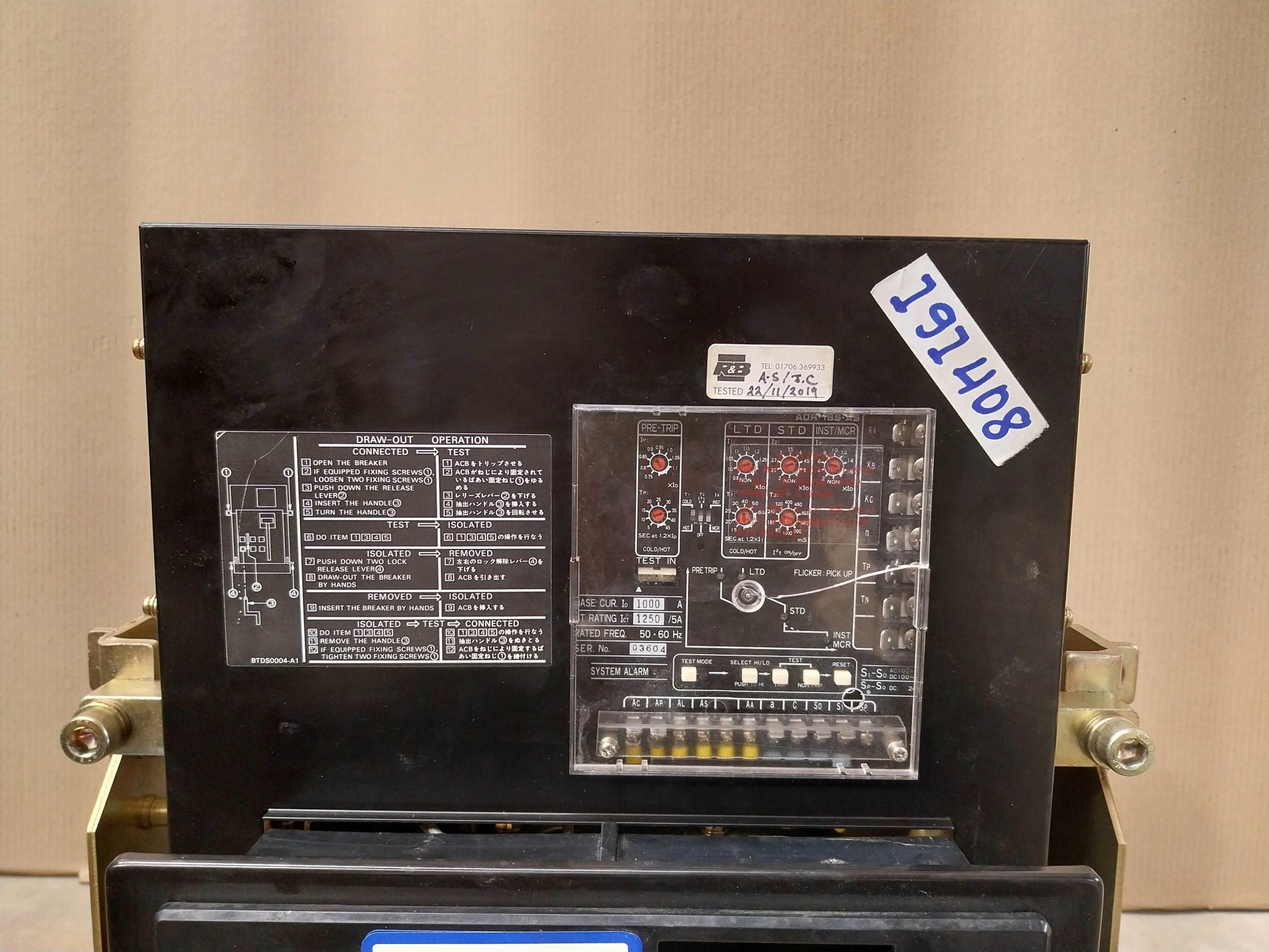

TERASAKI TEMBREAK AT12 AIR CIRCUIT BREAKER 3 POLE 1250A

Rs. 0.00
Rs. 0.00
Sale Sold out
Model No
Condition
Reference No
  • Brand

    Terasaki Electric Co.,Ltd.

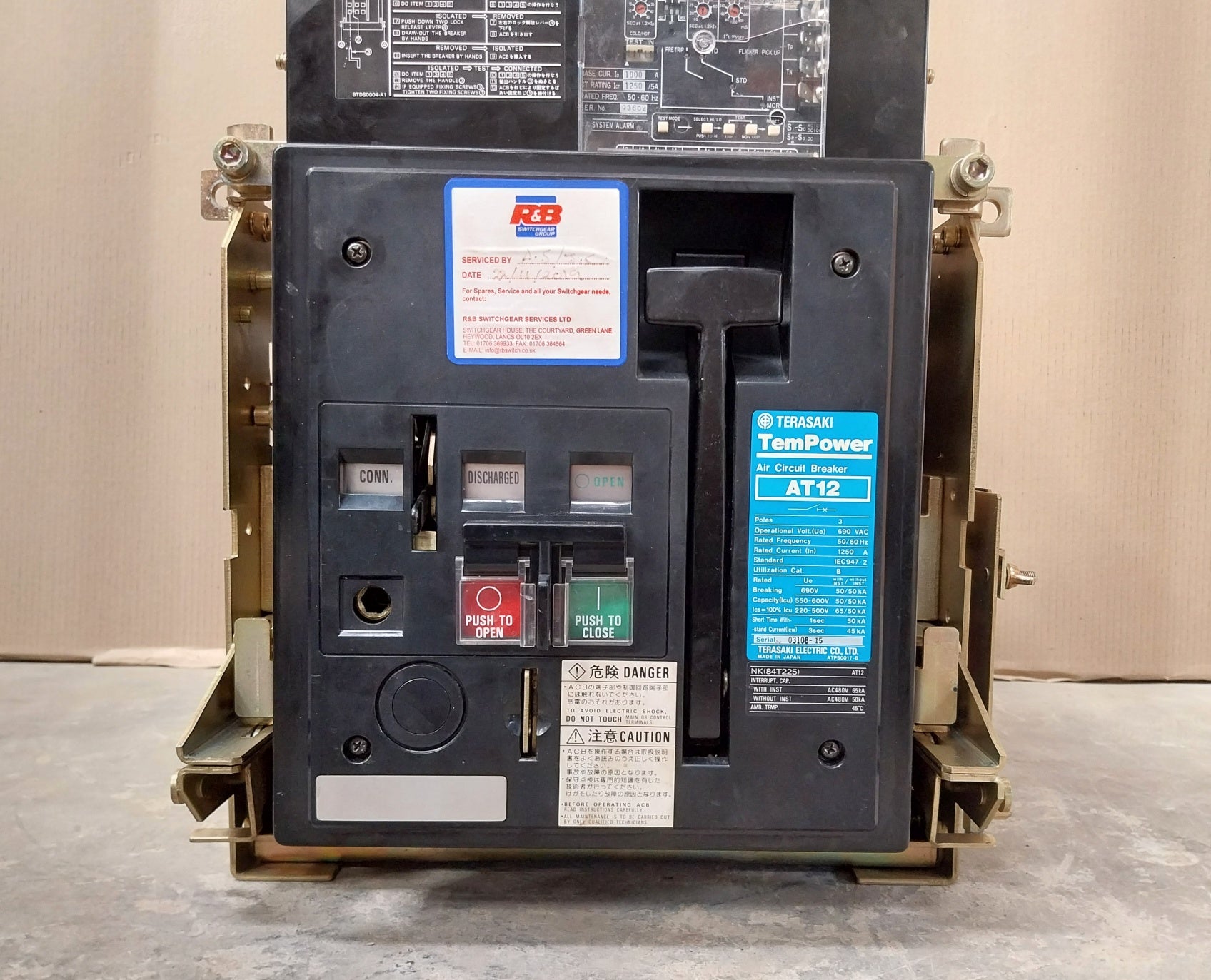

TERASAKI TEMBREAK AT12 AIR CIRCUIT BREAKER 3 POLE 1250A

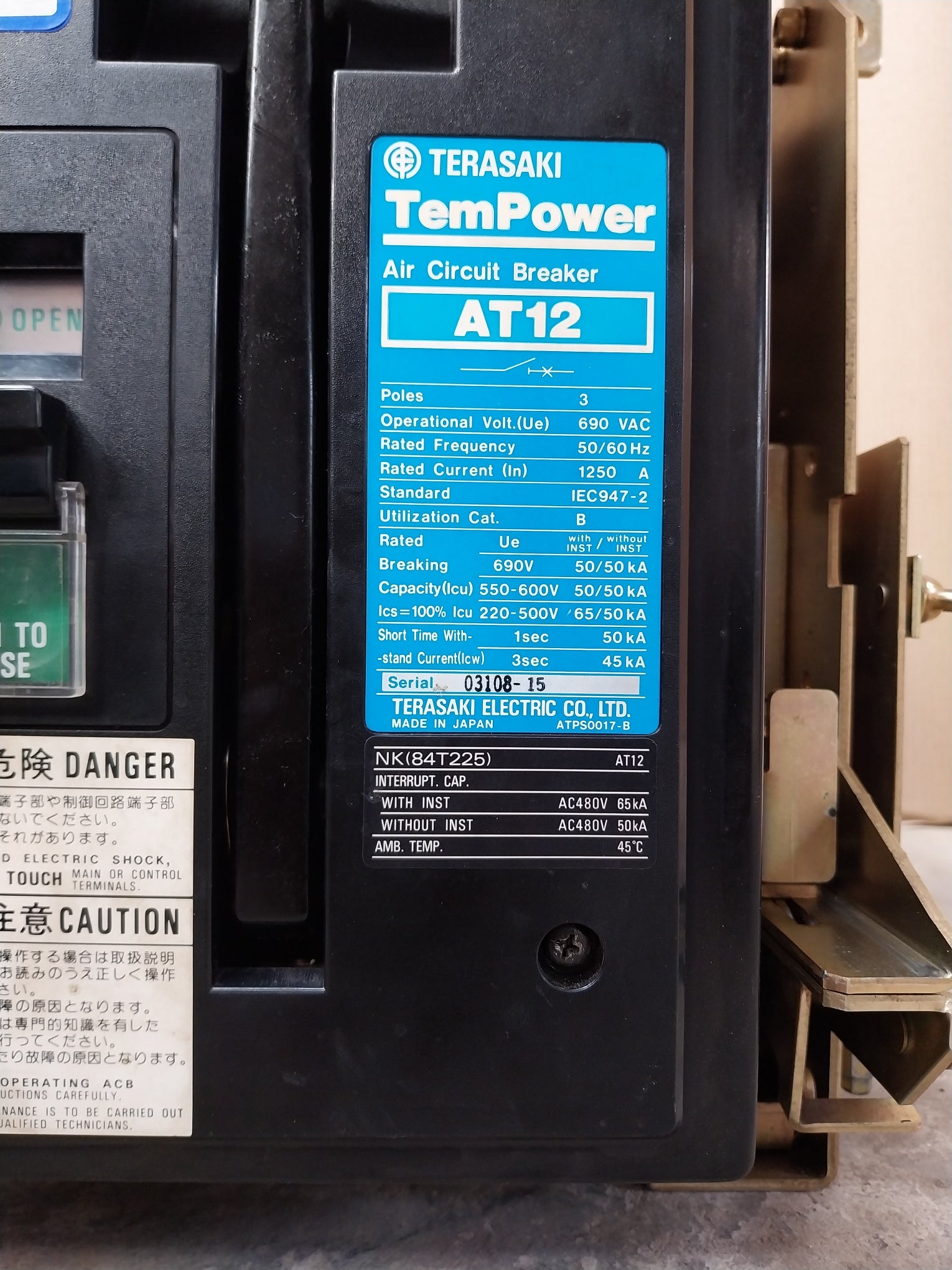

TERASAKI ELECTRIC CO.,LTD.
TEMBREAK
TYPE : AT12
AIR CIRCUIT BREAKER
POLES : 3
RATED CURRENT : 1250A
OPERATIONAL VOLT.(Ue) : 690VAC
RATED FREQUENCY : 50/60Hz
STANDARD : IEC947-2
UTILIZATION CAT.: B
RATED    Ue  WITH INST/WITHOUT INST
BRAKING 690V  50/50kA
CAPACITY(Icu) 550-600V 50/50kA
ICS=100% Icu  220-500V 65/50kA
SHORT TIME WITH 1sec 50kA
-STAND CURRENT(Icw) 3sec 45kA
SERIAL.NO : 03108-15
NK(84T225) AT12
INTERRUPT.CAP.
WITH INST : AC480V 65kA
WITHOUT INST : AC480 50kA
AMB.TEMP.: 45'C
ATPS0017-B

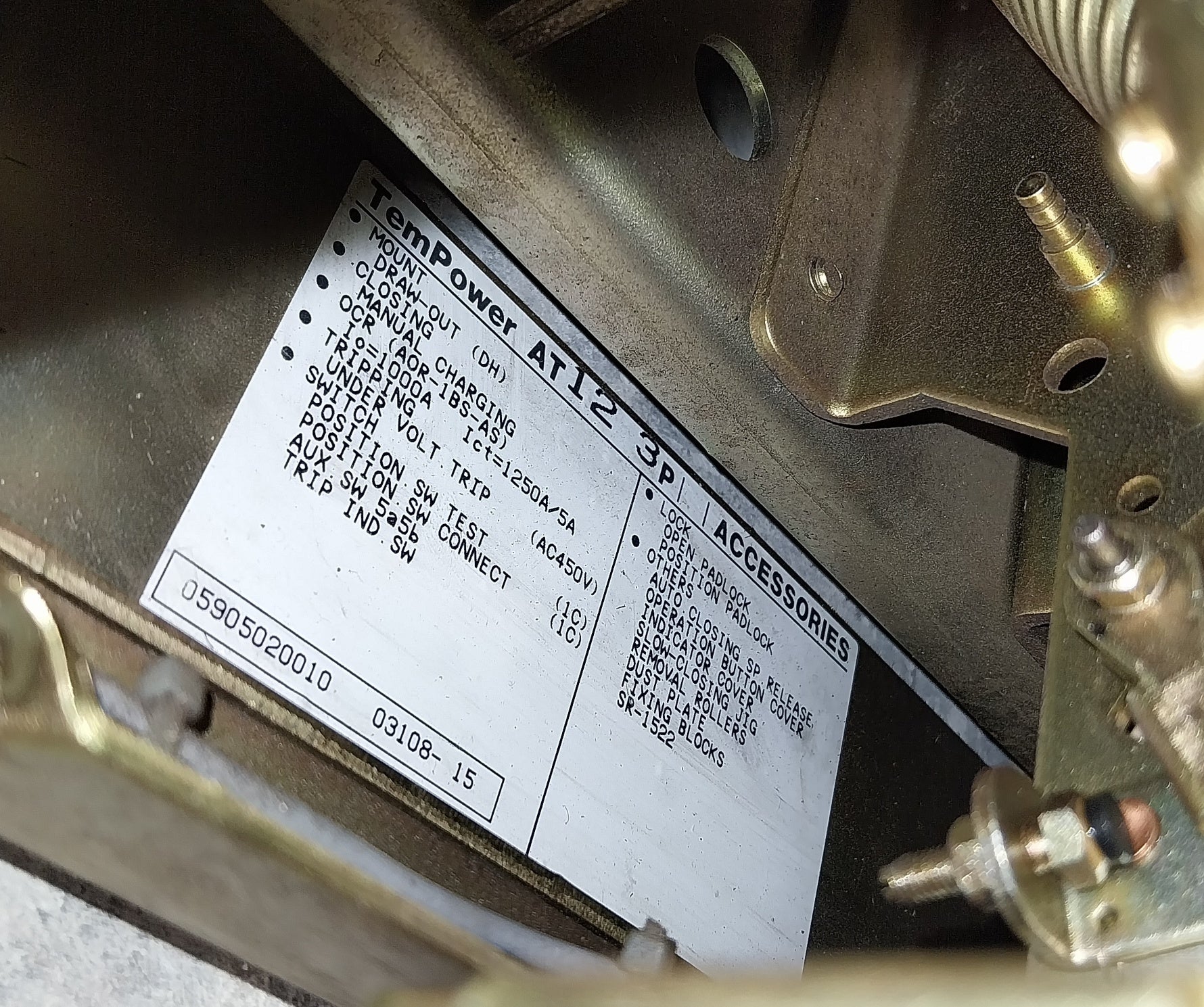

05905020010
03108-15

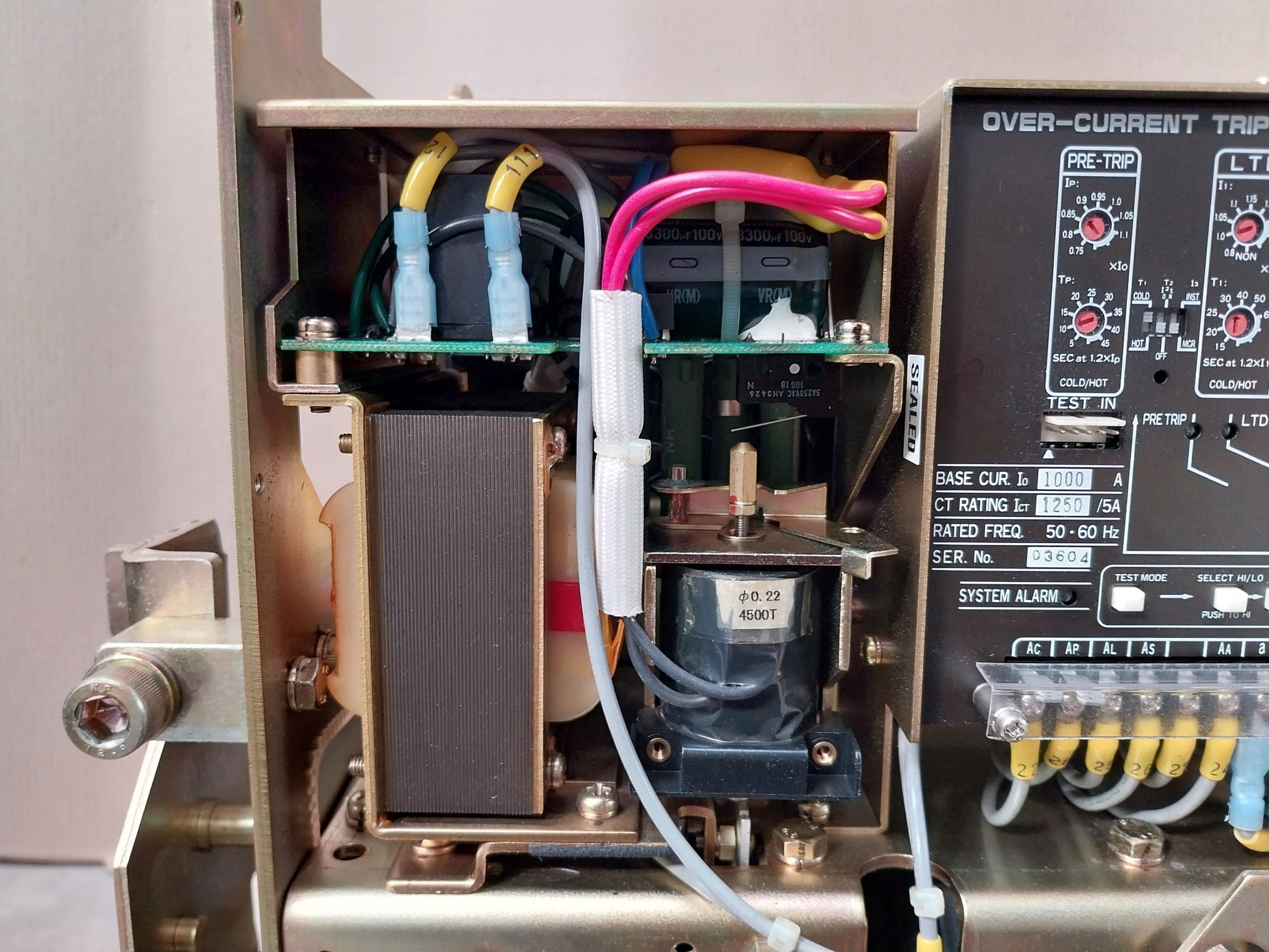

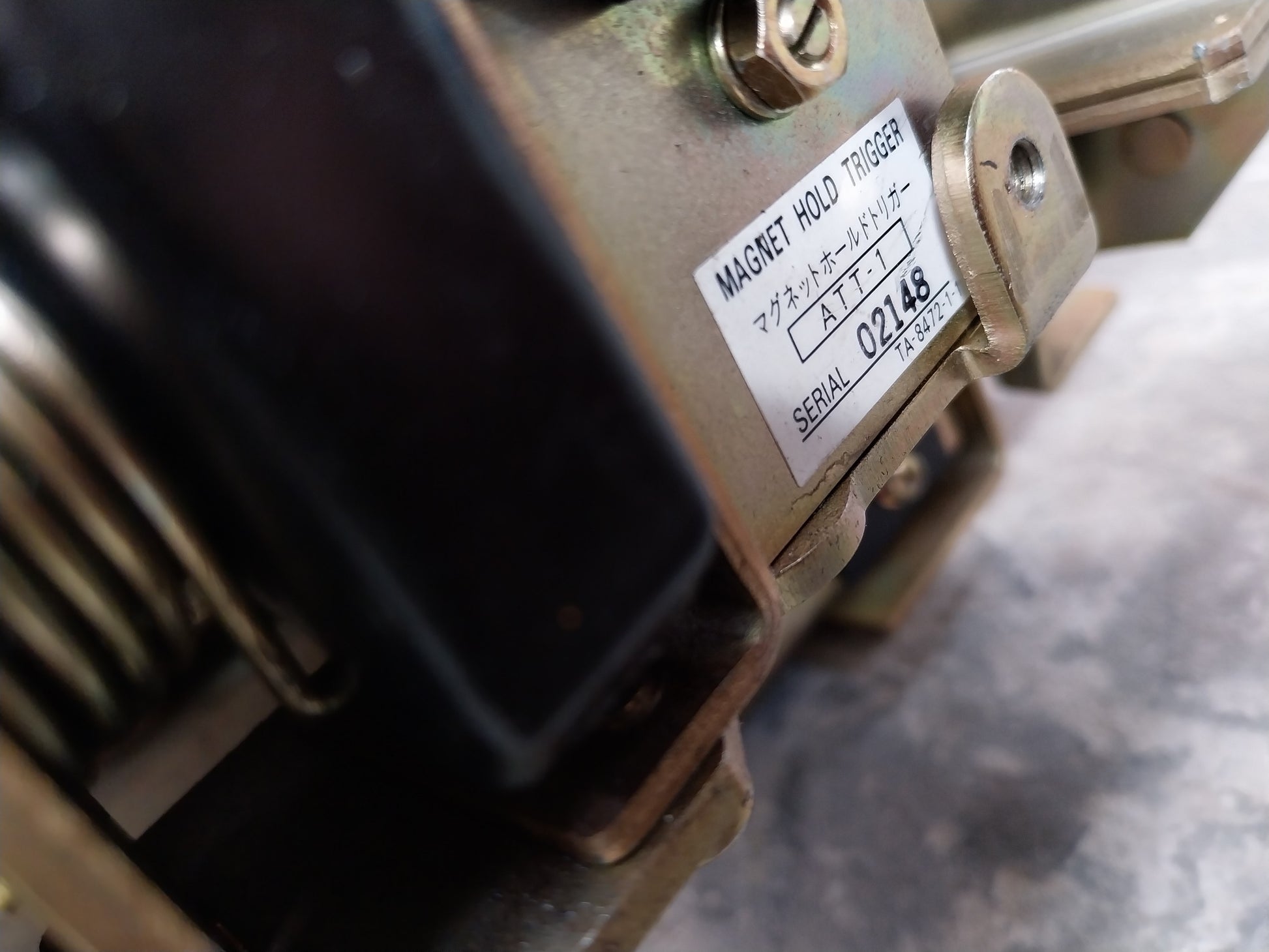

MAGNET HOLD TRIGGER
ATT-1
SERIAL.NO : 02148
TA-8472-1-1

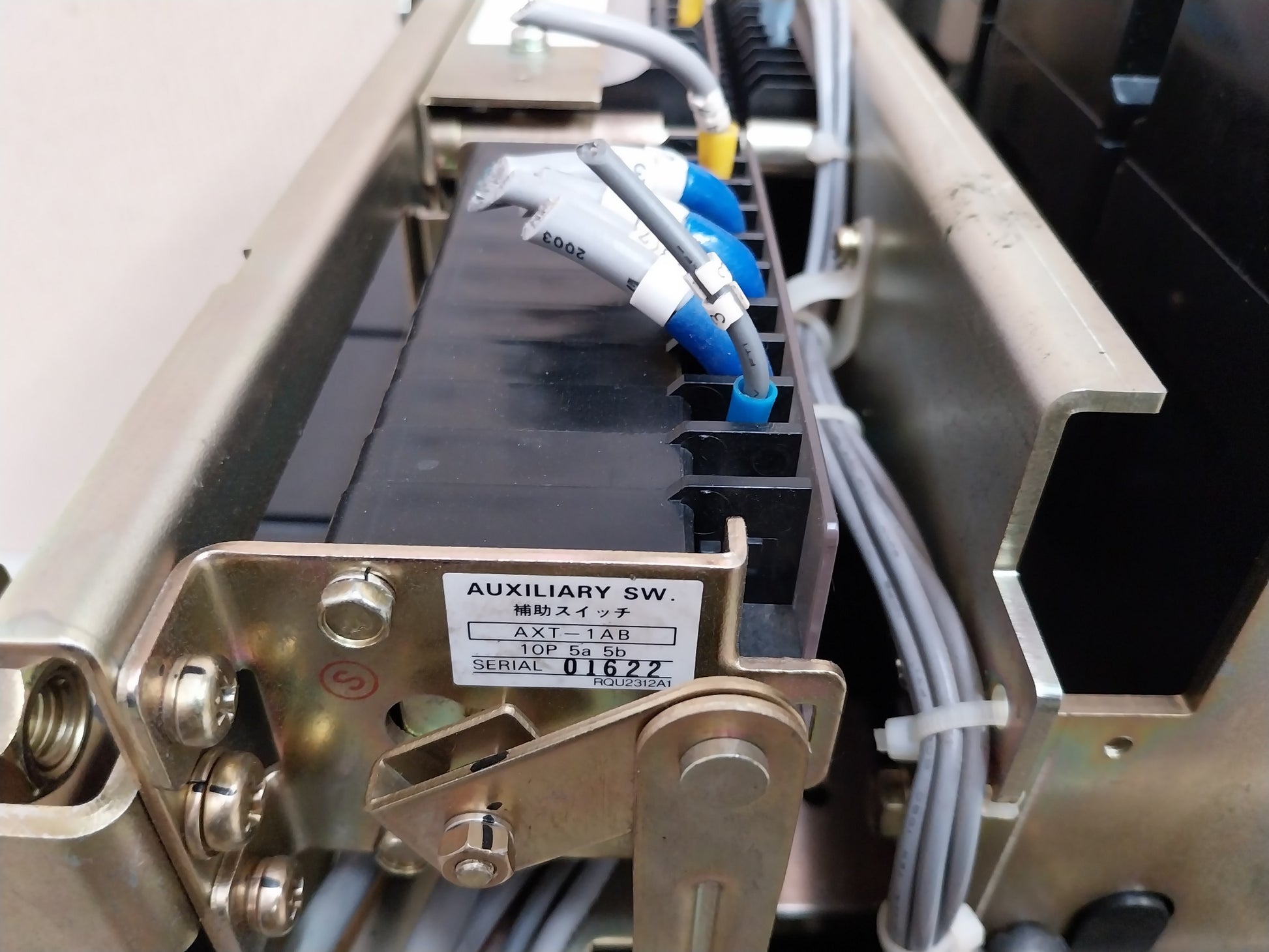

AUXILIARY SW.
AXT-1AB
10P 5a 5b
SERIAL.NO : 01622
RQU2312A1
WEIGHT : 78.200 Kg
MADE IN JAPAN
CONDITION : USED 1 PCS
REF.NO : 191408
